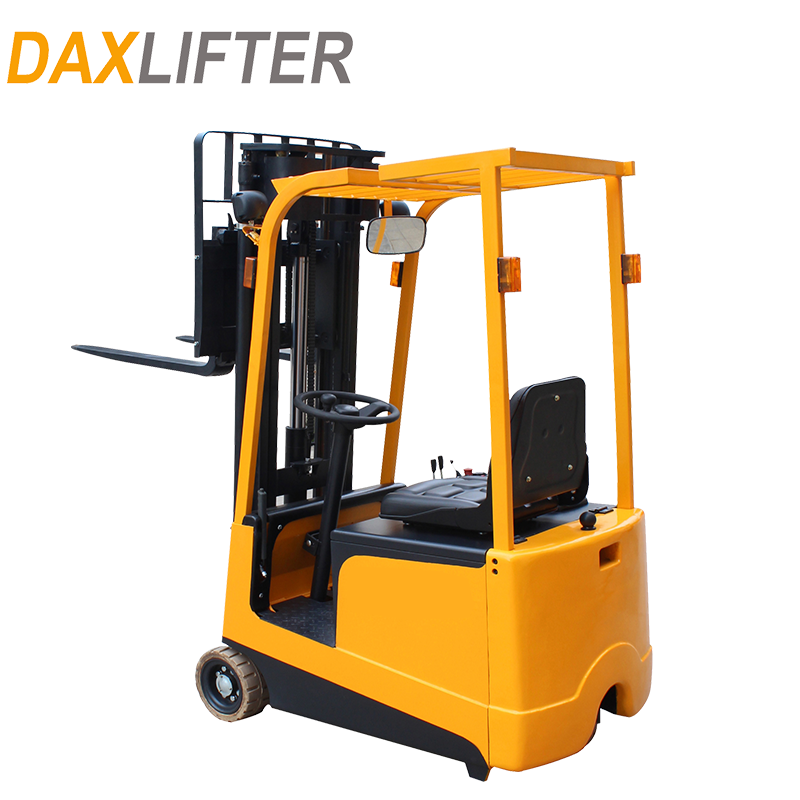

The DAXLIFTER CPD25-SC is a specialized compact solution for enterprises requiring efficient material handling in restricted spaces. In our 10+ years of supplying heavy-duty material handling equipment to the South East Asian market, we have identified a growing need for smaller, more maneuverable units. This 1000kg capacity model features a narrow chassis design, allowing it to navigate through aisles where larger forklifts simply cannot operate.
Our engineering team has optimized the AC drive system for 20% better energy efficiency, ensuring that this small forklift can handle a full day's work on a single charge. The CPD25-SC produces zero emissions and minimal noise, making it an ideal choice for indoor warehouses, pharmaceutical storage, and retail environments. The optional EPS electric power steering system provides light and nimble operation, reducing the physical strain on the operator during complex maneuvers.
Safety and reliability are never compromised in our small-scale models. The CPD25-SC is built with a robust frame and a high-visibility mast, ensuring that the driver has a clear line of sight at all times. The braking system is designed to be both reasonable and reliable, providing immediate stopping power when necessary. This model is perfect for businesses that need a versatile, eco-friendly tool for light to medium-duty lifting tasks.
Why Choose DAXLIFTER?
Expertise: Our engineers focus on maximizing performance in compact designs. All our products are CE certified, meeting ANSI compliance and ISO9001 factory standards.
Trust: Benefit from a 2-year warranty on core components and access to our Global service network for maintenance and support.
Technical Specifications
| Identification | Product Model designation | CPD25 |
|---|---|---|
| Config-code | SC10 | |
| Drive Unit | Electric | |
| Operation type | Seated | |
| Load capacity | 1000kg | |
| Load center | 600mm | |
| Dimension | Overall Size (L x W x H) | 2290x1004x1885mm |
| Lifting height | 2500mm | |
| Max. working height | 3275mm | |
| Lowered fork height | 32mm | |
| Fork dimensions | 800×100×32mm | |
| Maximum fork width | 215~650mm | |
| Turning radius | 1440mm | |
| Electric Motor | Drive motor power | 2.0 KW AC |
| Lift motor power | 2.0 KW | |
| Battery | 300/24 Ah/V | |
| Weight | Weight without battery | 1465 kg |
| Battery weight | 275 kg |
Key Features
- Compact and flexible structure for tight spaces.
- Convenient driving with comfortable, ergonomic seat.
- No pollution and low noise operation for indoor use.
- Reliable braking system for enhanced safety.
- Optional EPS electric power steering for ease of use.
